Dashboard will not go down to Zero RPM

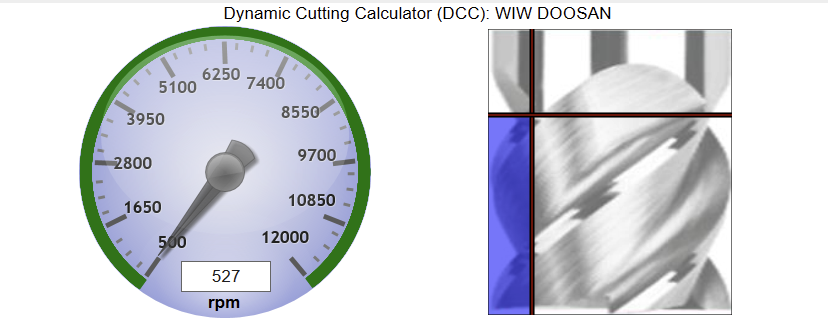

Dashboard dial starts at a minimum speed above zero.

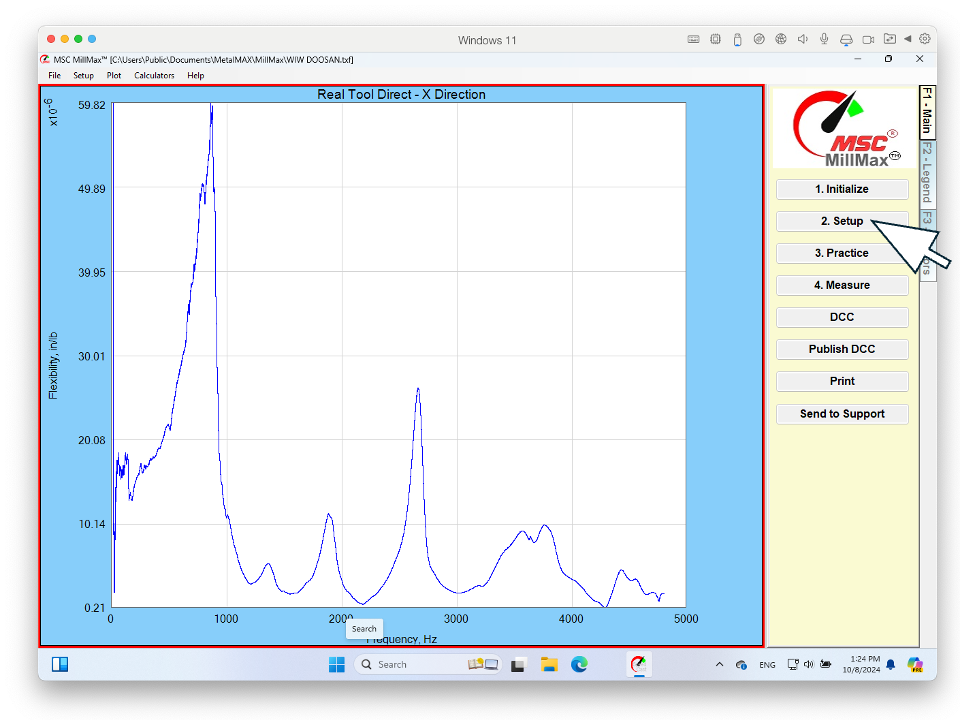

Click on SETUP

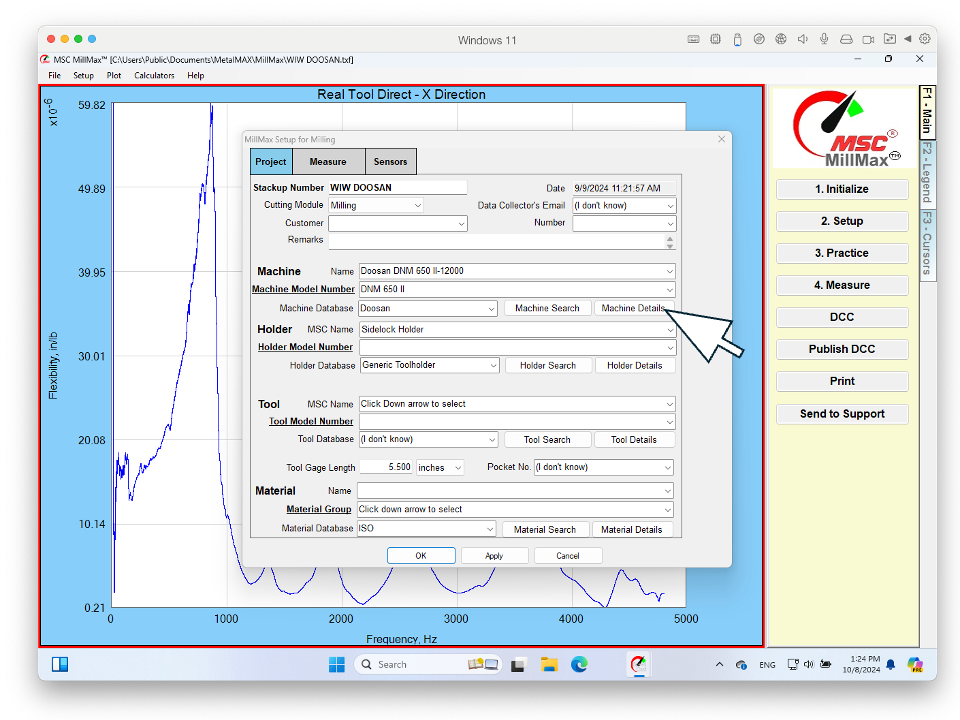

Click on MACHINE DETAILS

Check the SHOW ALL FIELDS box

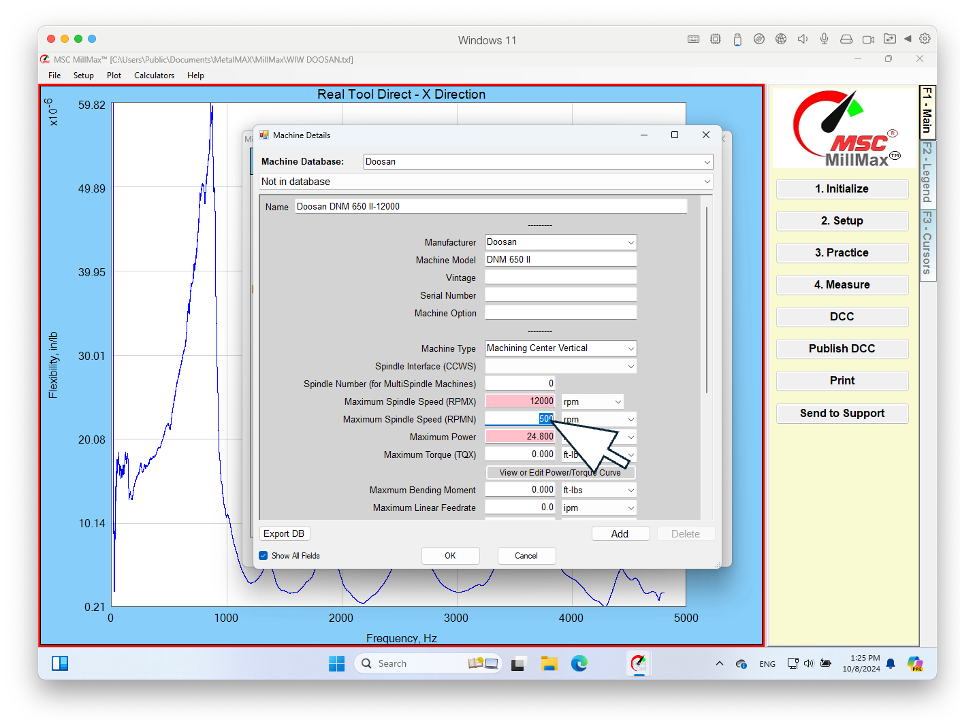

Click on RPMN field

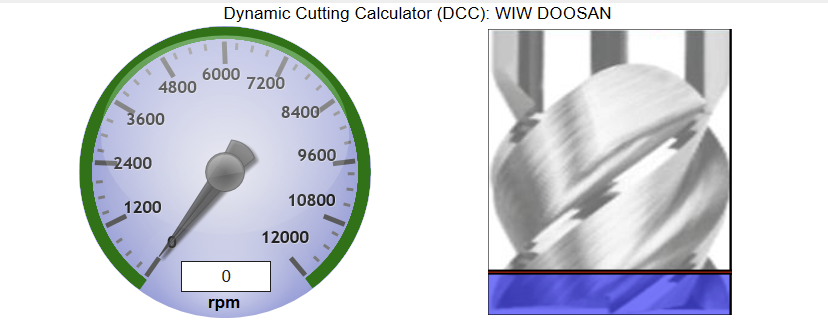

Change to "0" or whatever value you want to show on the Dashboard.

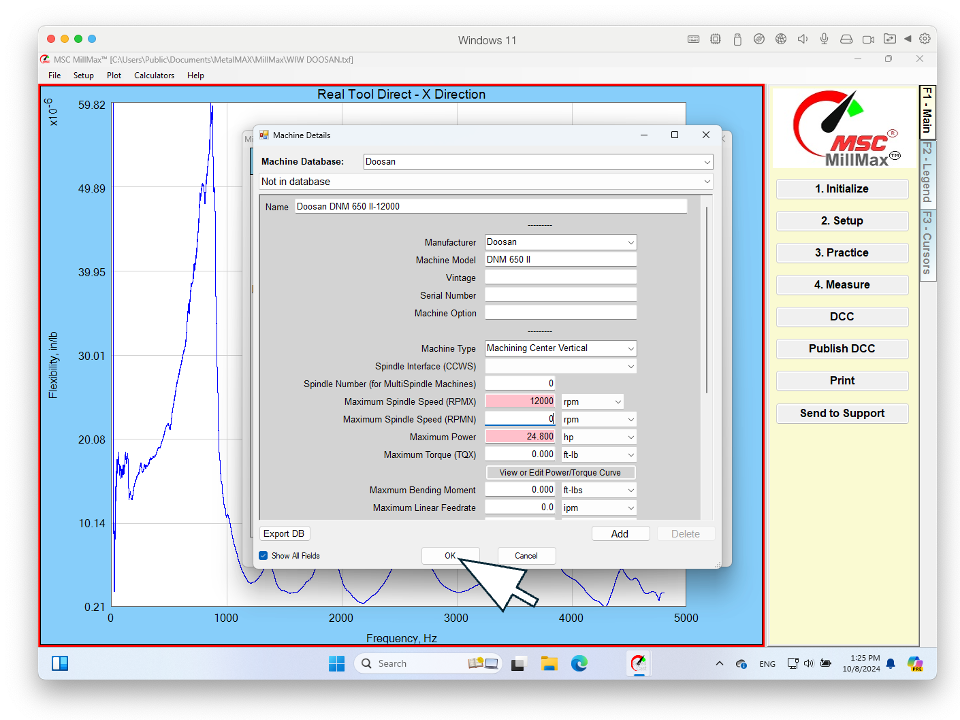

Click OK

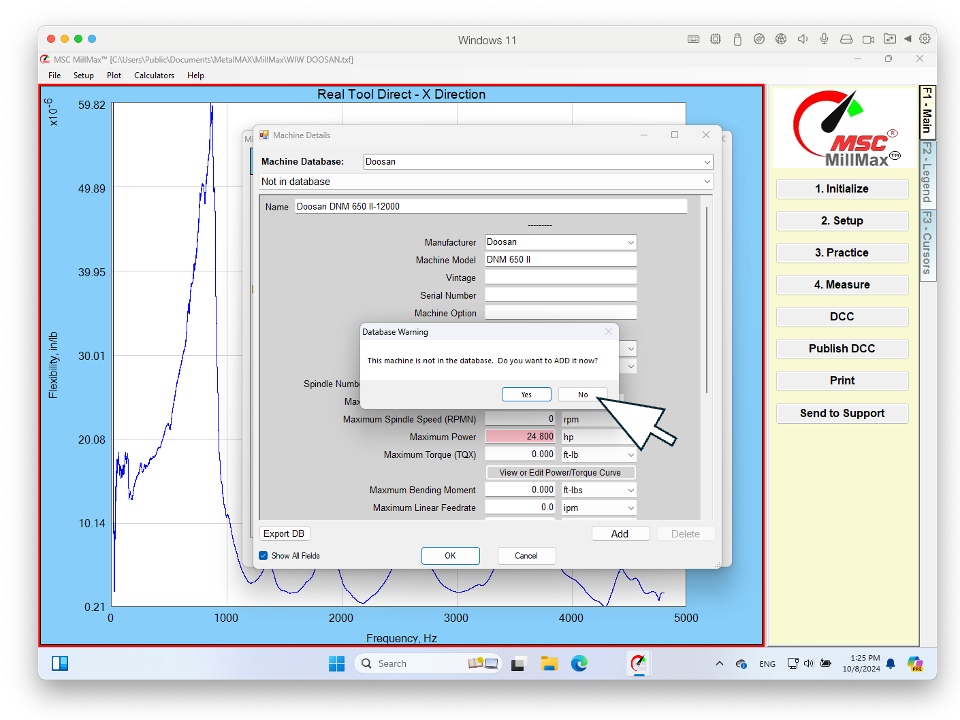

Click NO

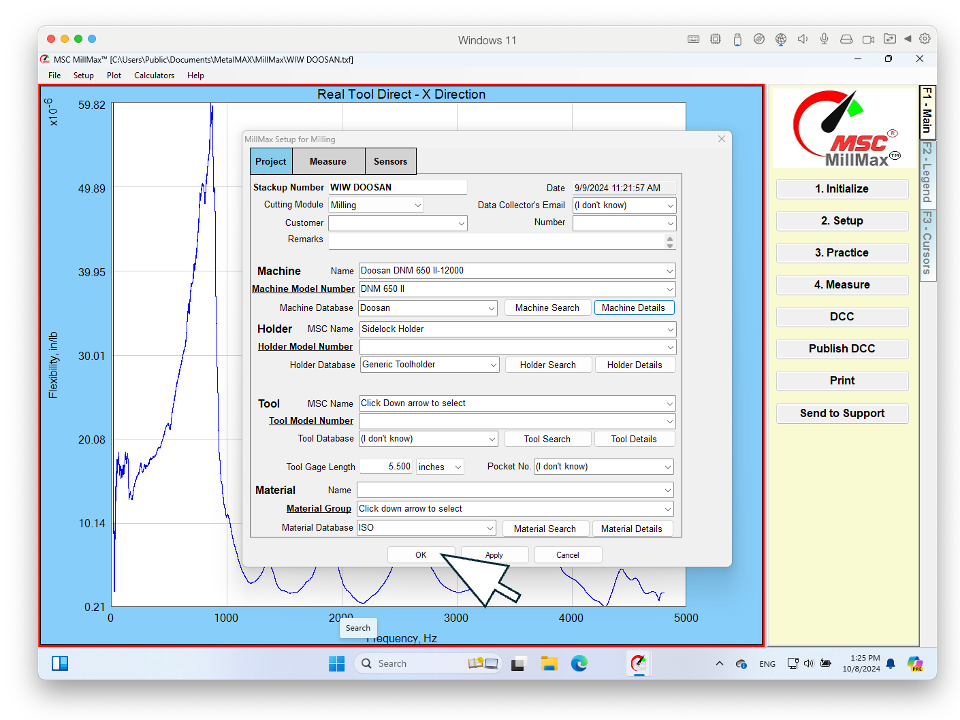

Click OK
