Can you tap test PCD and diamond pointed milling tools?

Yes, PCD endmills and inserted tooling are subject to same vibration as any other milling tool. Because of their higher speeds, stability lobe diagrams and Dashboards identifying good and bad speed ranges is even more important.

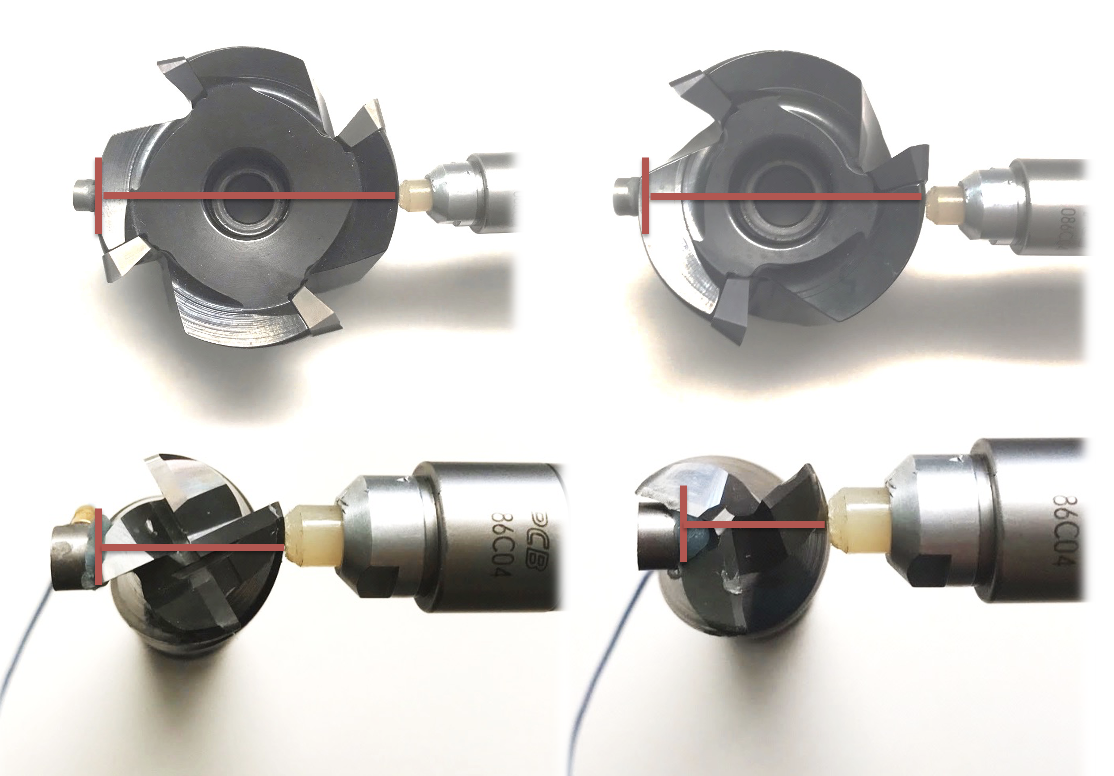

Extra care must be taken not to strike on the diamond itself as it may dislodge the tip bond. Tap on the steel of the endmill or cutter body.
